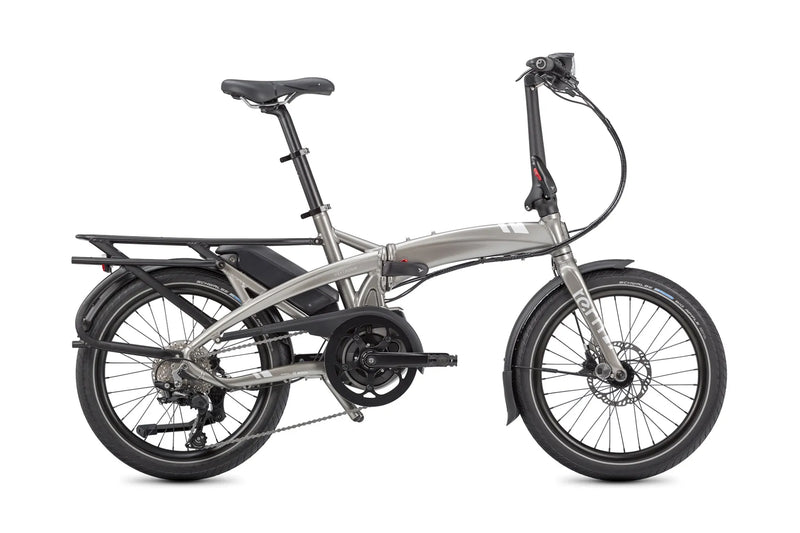

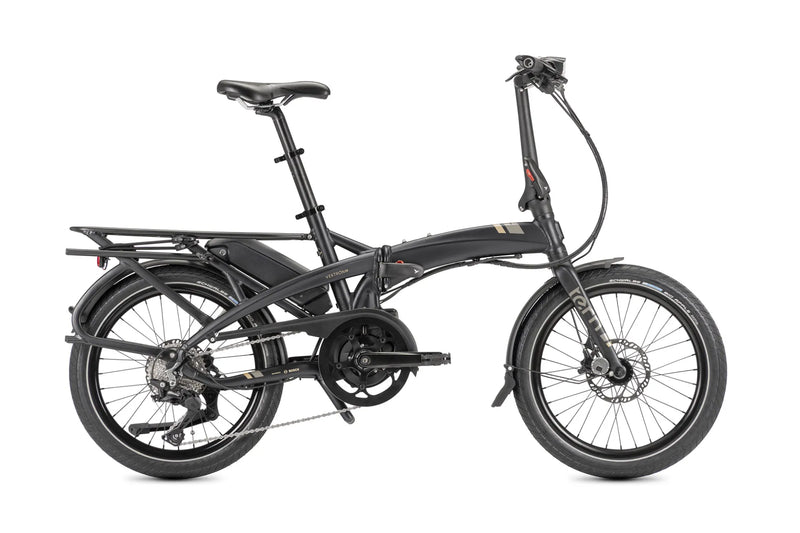

Tern Vektron S10
- New colors and updated styling
- Upgraded to the Bosch Performance electric drivetrain for 300% more assistance and 65 Nm of torque
- Updated frame with a reclining battery for a lower center of gravity and better ride
- Frame passed strict European safety standards for pedal-assist e-bikes, having been certified as EN15194-compliant by EFBE Prüftechnik
- Integrated Atlas V Rack™, integrated 8 point mounting; Max load weight: 27 kg (60 lb) works seamlessly with Thule Yepp Maxi and Dash® RM child seats—no adapters needed
- Resizes in seconds to fit riders 147 – 195 cm (4’10” – 6’5”) so a single bike can be shared by the family
- Fits easily on buses, subways and taxis for electric multi-modal commuting
GENERAL INFO
SPEEDS:
1 x 10
WEIGHT:
22.1 kg (48.7 lb)
GEAR INCHES:
30" - 97" (2.36 - 7.72 m)

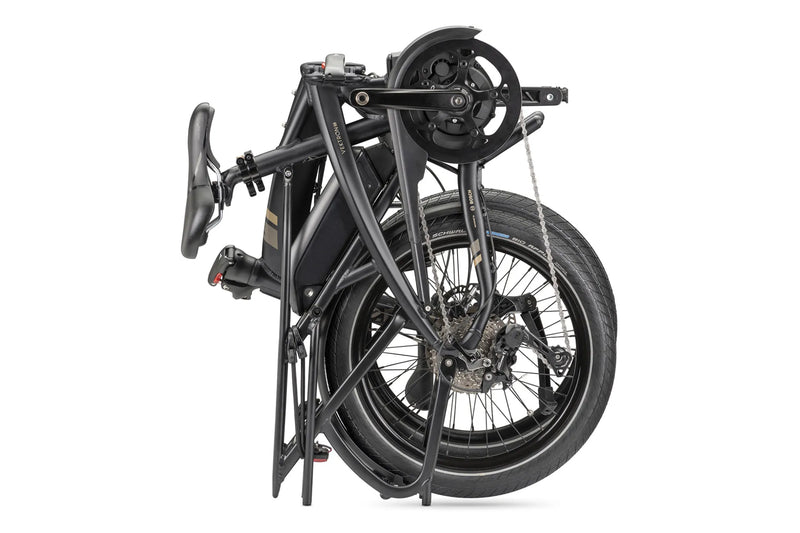

FOLDING SIZE:
40 × 85.5 × 67.5 cm (15.7 × 33.7 × 26.6 in)
FOLDING TIME:
10 sec
FRAME SIZES:
One size
DISTANCE: SEATPOST TO HANDLEBAR:
62 - 69 cm (24.4 - 27.2 in)
DISTANCE: SADDLE TO PEDAL:
67 - 110 cm (26.4 - 43.3 in)
SUGGESTED RIDER HEIGHT:
147 - 195 cm (57.9 - 76.8 in)
MAX GROSS VEHICLE WEIGHT:
125 kg (275.6 lb)
MAX RIDER WEIGHT:
105 kg (231.5 lb)
FRAME
FRAME:
Tern Vektron, hydroformed 7005-AL, OCL+ joint, 3 patented technologies
FORK:
Tern Tarsus, 6061-Al, hydroformed
COCKPIT
HANDLEPOST:
Tern Physis 3D, 3D forged, 5 patented technologies
STEM:
Tern Andros, adjustable, forged construction, patented technology
HEADSET:
Flux Pro, angular contact bearings, Physis integrated
HANDLEBAR:
Kinetix Comp, double-butted 6061-AL, Tern Andros adapted
GRIPS/BAR TAPE:
Ergon
SADDLE:
Tern Porter+, patented GripPad design, PrimeGel padding
SEATPOST:
Tern Telescope, 34.9/30.9 mm, 2014-AL
SEATPOST CLAMP:
Tern Collar, 6061-AL, 2pc
BRAKES
FRONT BRAKE:
Magura MT4, hydraulic disc
REAR BRAKE:
Magura MT4, hydraulic disc
BRAKE LEVERS:
Magura, hydraulic disc
BRAKE CABLE & HOUSING:
Magura, hydraulic disc
WHEELS
FRONT HUB:
Novatec, sealed cartridge bearing, disc
REAR HUB:
Novatec, sealed cartridge bearing, disc
SPOKES & NIPPLES:
Stainless steel, double-butted
RIMS:
Kinetix Comp, for disc
TIRES:
Schwalbe Big Apple, Performance Line, 55-406, puncture protection, Reflex
TRANSMISSION
SHIFTER(S):
Shimano Deore, 1 x 10 spd
REAR DERAILLEUR:
Shimano Deore Shadow+
CRANKSET:
Vektron custom, forged 6061-AL crankarm
CASSETTE/FREEWHEEL:
Shimano 11-36T, 10 spd
BOTTOM BRACKET:
Motor integrated
CHAIN:
10 spd, DHT for eBike, GST corrosion resistant coating
PEDALS:
MKS EZY
SHIFTER CABLE & HOUSING:
Jagwire LEX-SL, slick treatment, alloy ferrules
E-SYSTEM
MOTOR:
Bosch Performance, 300% Assist, 65 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
BATTERY:
Bosch PowerPack 400 Wh
DISPLAY:
Bosch Purion, 4 mode selectable, walk assist
RANGE:
400 Wh: 53 -106 km (34-68 mi)
CHARGER:
220V, 4A (EU); 100-240V, 4A (US)
BELLS & WHISTLES
BELL:
Aluminum
CHAINGUARD:
SKS Chainblade
KICKSTAND:
URSUS, rear mount
CLIP SYSTEM:
Magnetix 3.0
LUGGAGE SOCKET:
Yes
FRONT LIGHT:
Tern Valo Direct, 190 lumens
REAR LIGHT:
Herrmans H-Trace, for eBike
FENDERS:
SKS, stainless hardware
RACK(S):
Atlas V Rack™, integrated 8 point mounting; Max load weight: 27 kg (60 lb)
